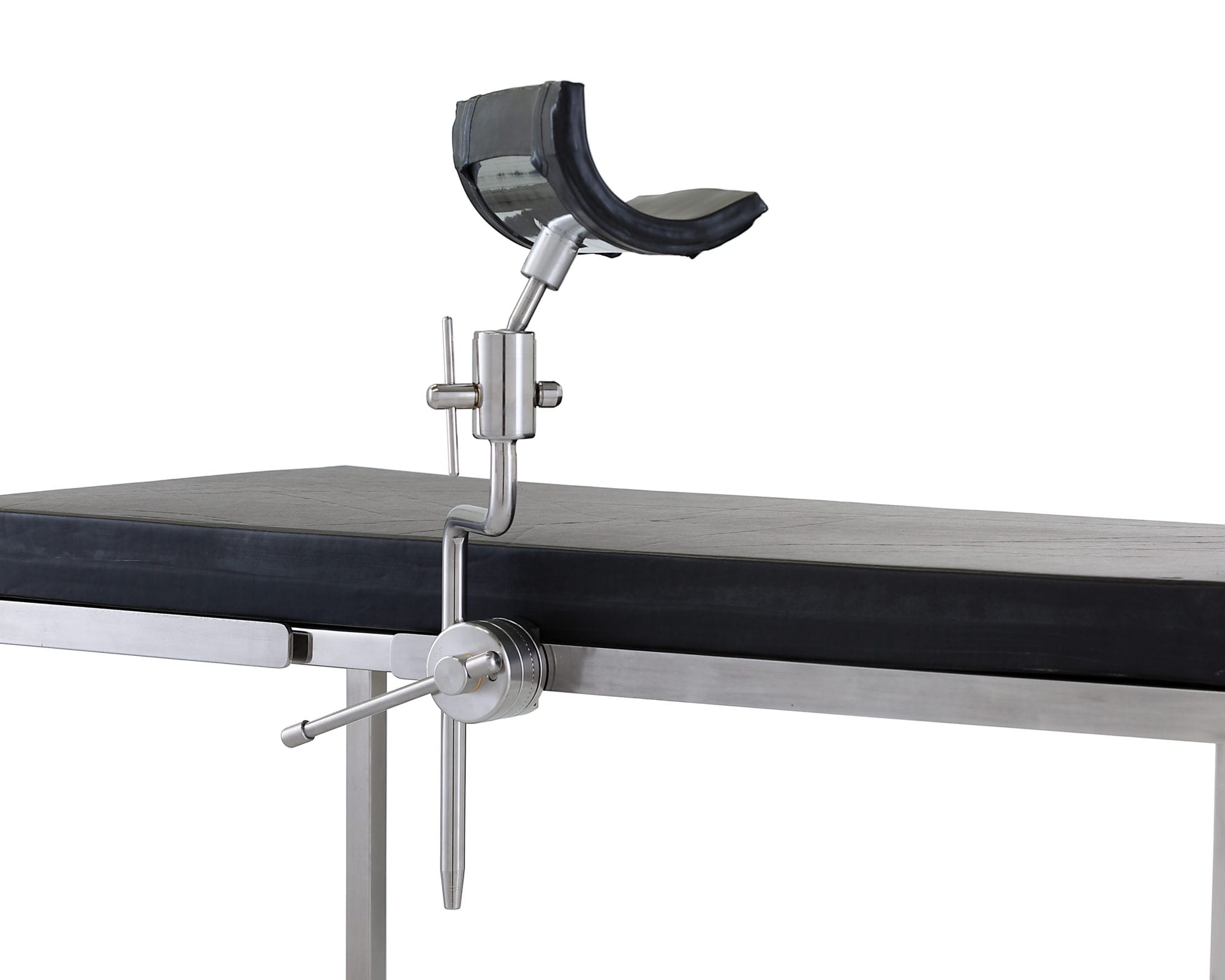

Arm Support (Carter Braine)
TT/404
Specifications
Technical Data
Instructions for use
Specifications
Manufactured from high grade 306 stainless steel with high resilience foam padding covered in wipe clean, durable covering.
TT/404 Arm Support (Carter Braine) Complete with Pad
TT/131 Replacement Support Pad
Technical Data
- Metalwork: High grade 306 stainless steel.Pad: Inner high resilience foam with bonded cover made from waterproof, multi-stretch polyurethane material.Fire Retardancy: Crib 5, Ignition source 0 to BS7177
Cleaning: 1,000 ppm diluted or 0.1% hypochlorite solution (to be used in conjunction with local infection control guidelines).
Infection Control: All seams are sealed (without stitching) for infection control purposes.
Instructions for use
- Choose the correct accessory clamp for the operating table that the Arm Table is being attached.Slide the accessory clamp onto the accessory rail at the desired position.Slot the round bar on the Narrow Arm Table into the clamp and tighten.
- Angle the Arm Support to the desired angle.
- Place the arm into the gutter part of the Arm Support
