Lateral Support – Tudor Edwards

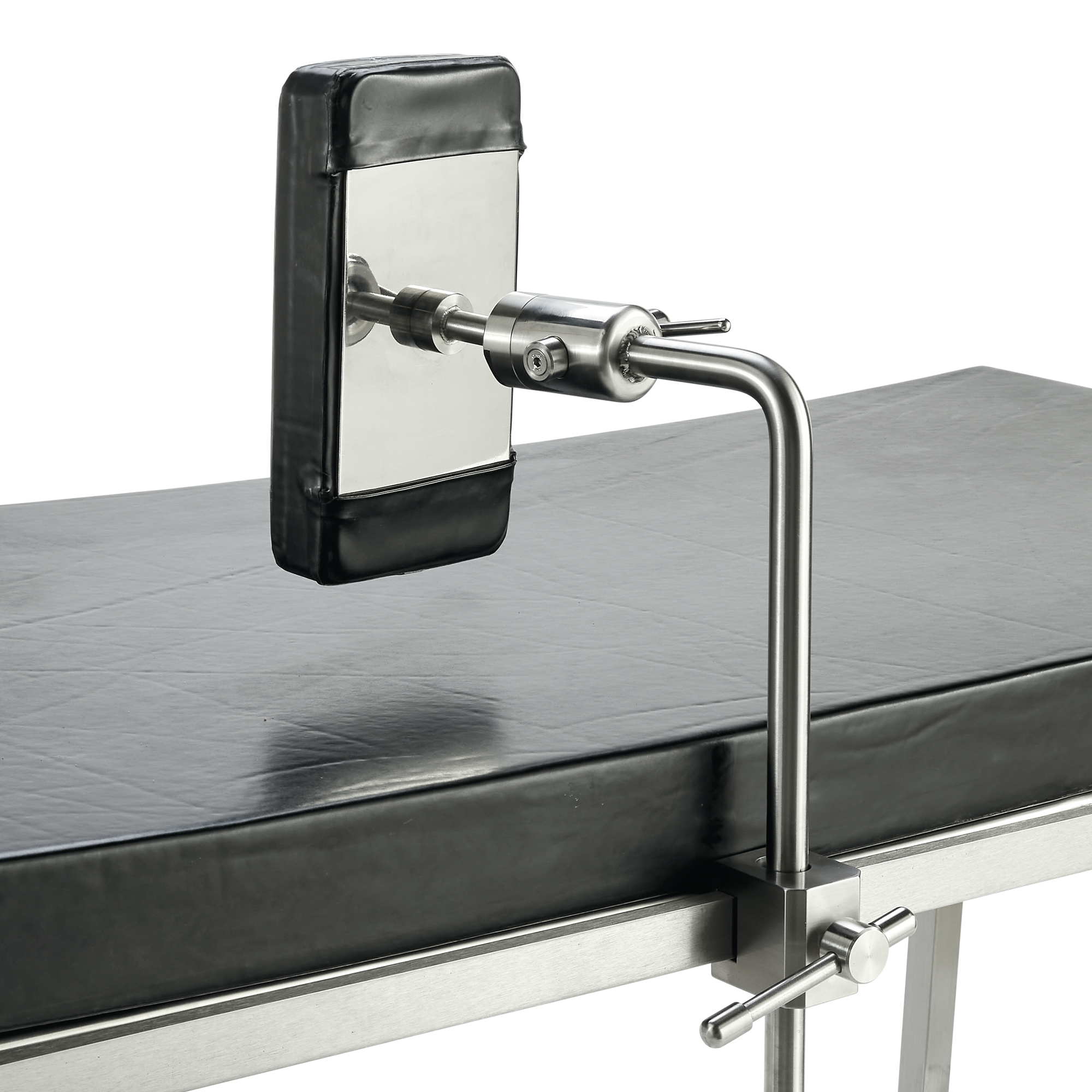

Lateral Support with a flat pad for use with all table models. The support has a swivel head and adjustable bar to accommodate all patients.

TT/106 – Lateral Support with Pad
TT/130 – Replacement lateral Support Pad

• • Metalwork:  High grade 306 stainless steel 16mm round bar.Pad: Inner high resilience foam with bonded cover made from waterproof, multi-stretch polyurethane material.Fire Retardancy: Crib 5, Ignition source 0 to BS7177Cleaning: 1,000 ppm diluted or 0.1% hypochlorite solution (to be used in conjunction with local infection control guidelines).Infection Control: All seams are sealed (without stitching) for infection control purposes.

• • • Choose the correct accessory clamp for the operating table that the Lateral Support parts will be attached.
    • Slide the accessory clamp onto the accessory rail at the desired position.
    • Slot the round bar on the Lateral Brace into the clamp and tighten.
    • Place the patient in a lateral position, adjust the angle of the pad to the desired position and tight the handle
